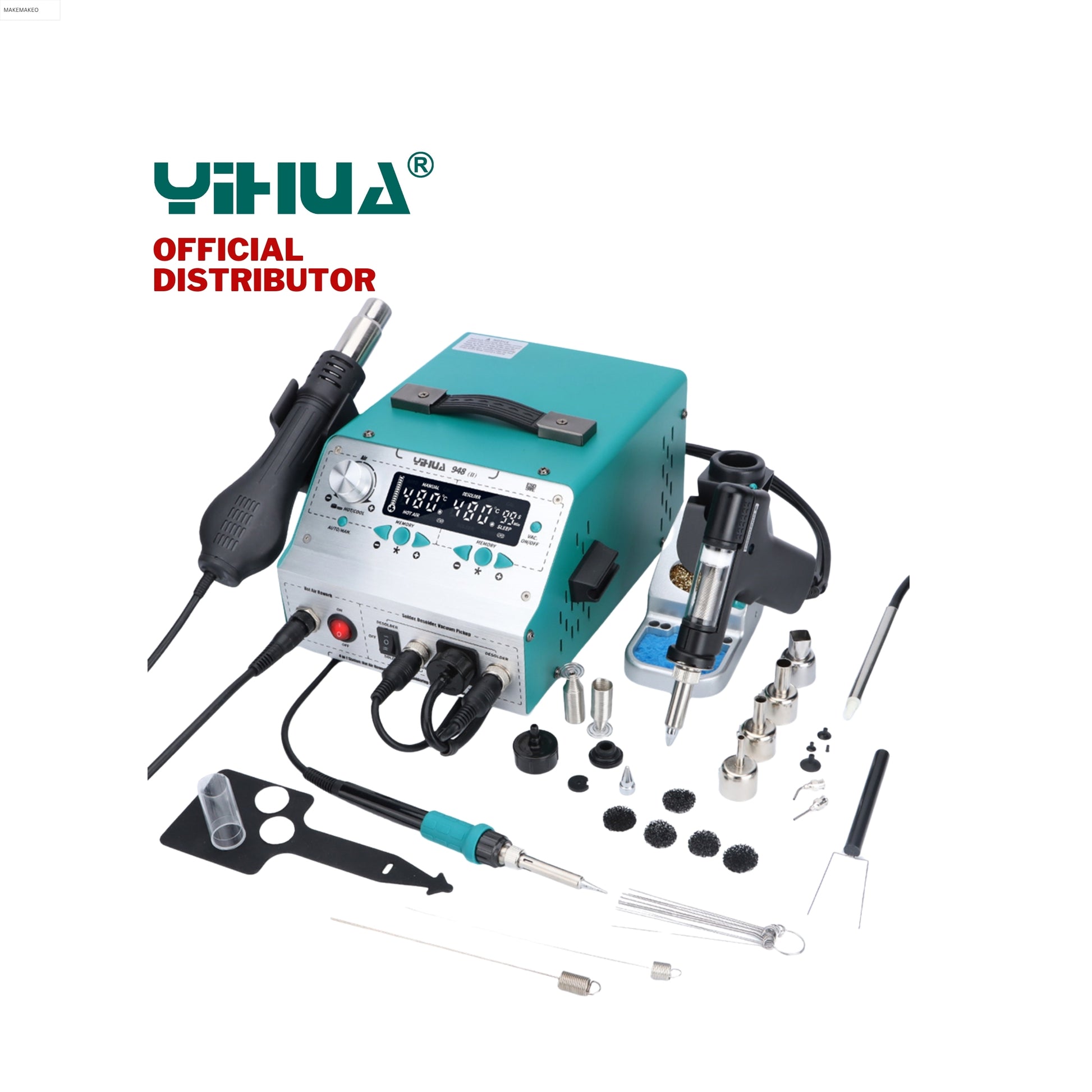

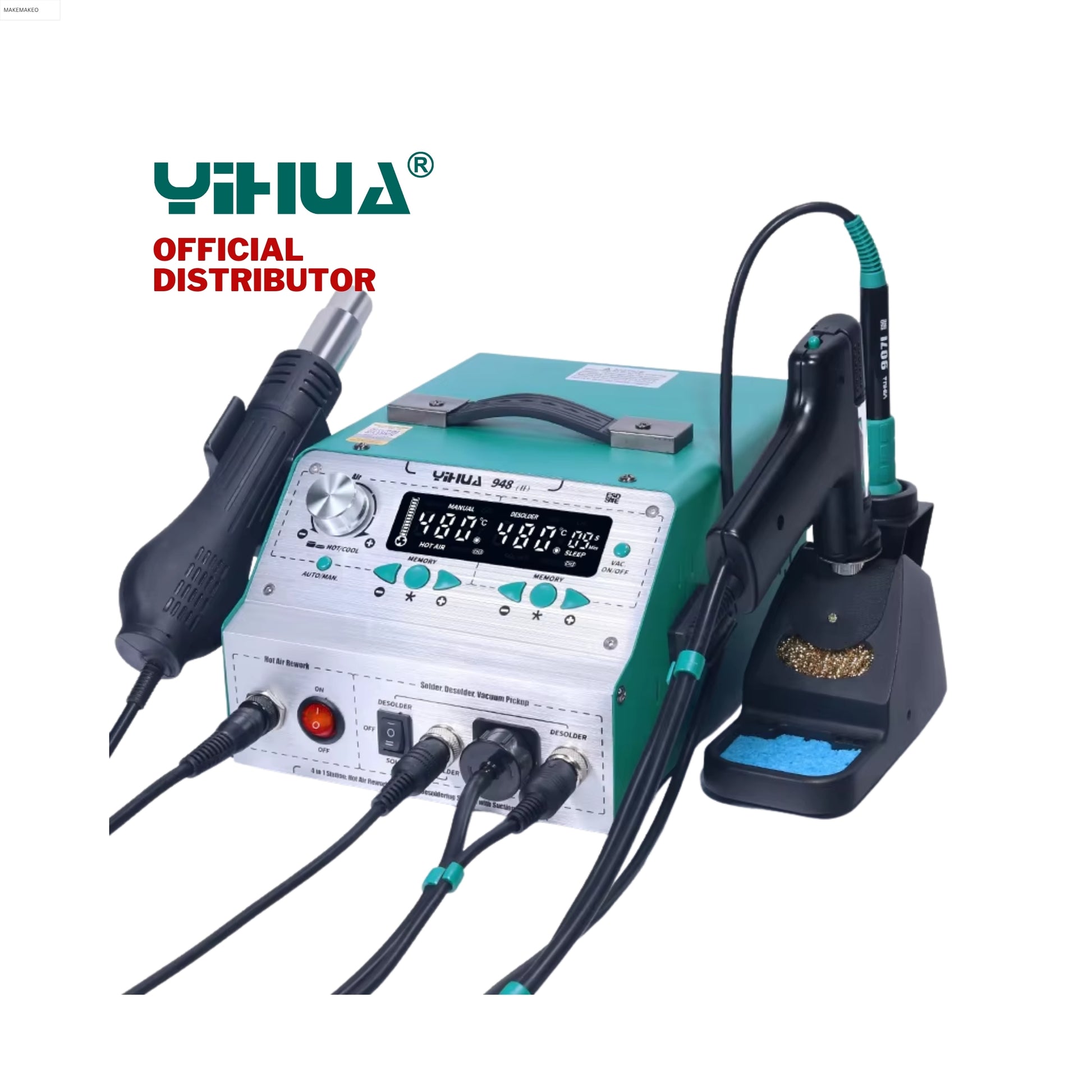

YIHUA 948 II Multi-Function Desoldering, Soldering, & Rework Station

YIHUA 948 II Multi-Function Desoldering, Soldering, & Rework Station

In stock

SKU:MLE04249

Regular price ₱8,399.00
Regular price ₱10,625.00 Sale price ₱8,399.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
Variation
View full details

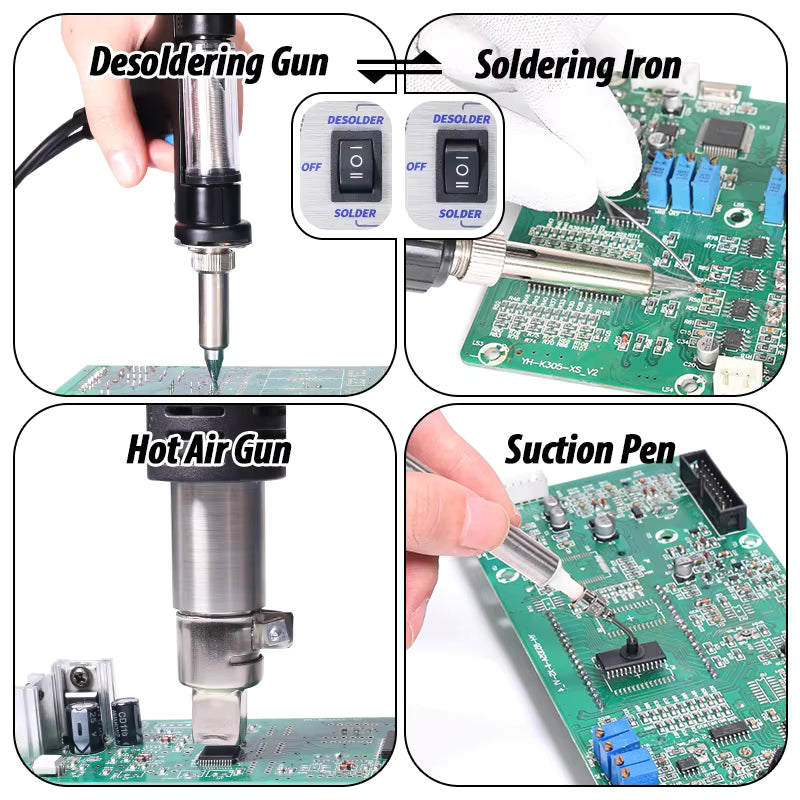

Great for desoldering and soldering applications on a broad range of components. Applicable components include SOIC, CHIP, QFP, PLCC, BGA,SMD. On top of that, the station is especially suitable for desoldering in-line sockets, transformers, LCD screens, nixie tube screens, IC chips, and in-line headers.

The unit's applications include heat shrinking, drying, paint removal, glue removal, defrosting, pre-heating, glue-soldering, and more.

Specifications:

Control Unit Dimension: L280xW187xH135mm ±5mm
Operating Ambient Temperature: 0°C ~ 40°C/32°F ~ 104°F

Hot Air Rework Station
Airflow: Brushless fan with smooth aur delivery
Airvolume: ≤120L/min
Temperature Range: 100°C ~ 480°C/212°F ~ 896°F
Display: Nixie LED

Soldering Station
Temperature Range: 200°C ~ 480°C/392°F ~ 896°F
Display: Nixie LED
Soldering Tip to Ground Resistance: <2 Ohms

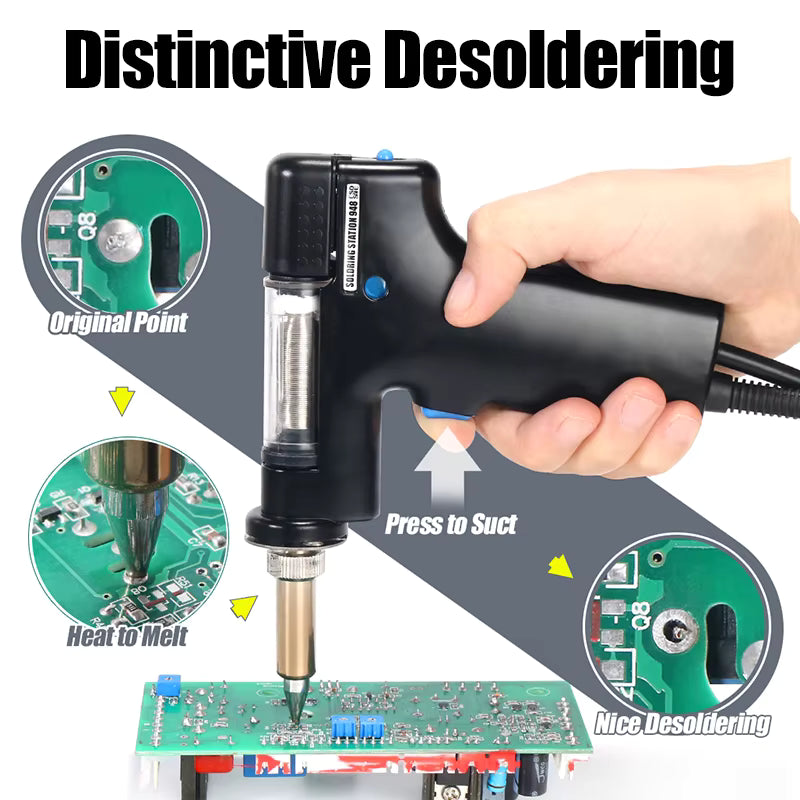

Desoldering Station
Temperature Range: 380°C ~ 480°C/716°F ~ 896°F
Display: Nixie LED
Suction Pressure: 0.05MPa(measured from the nozzle)
