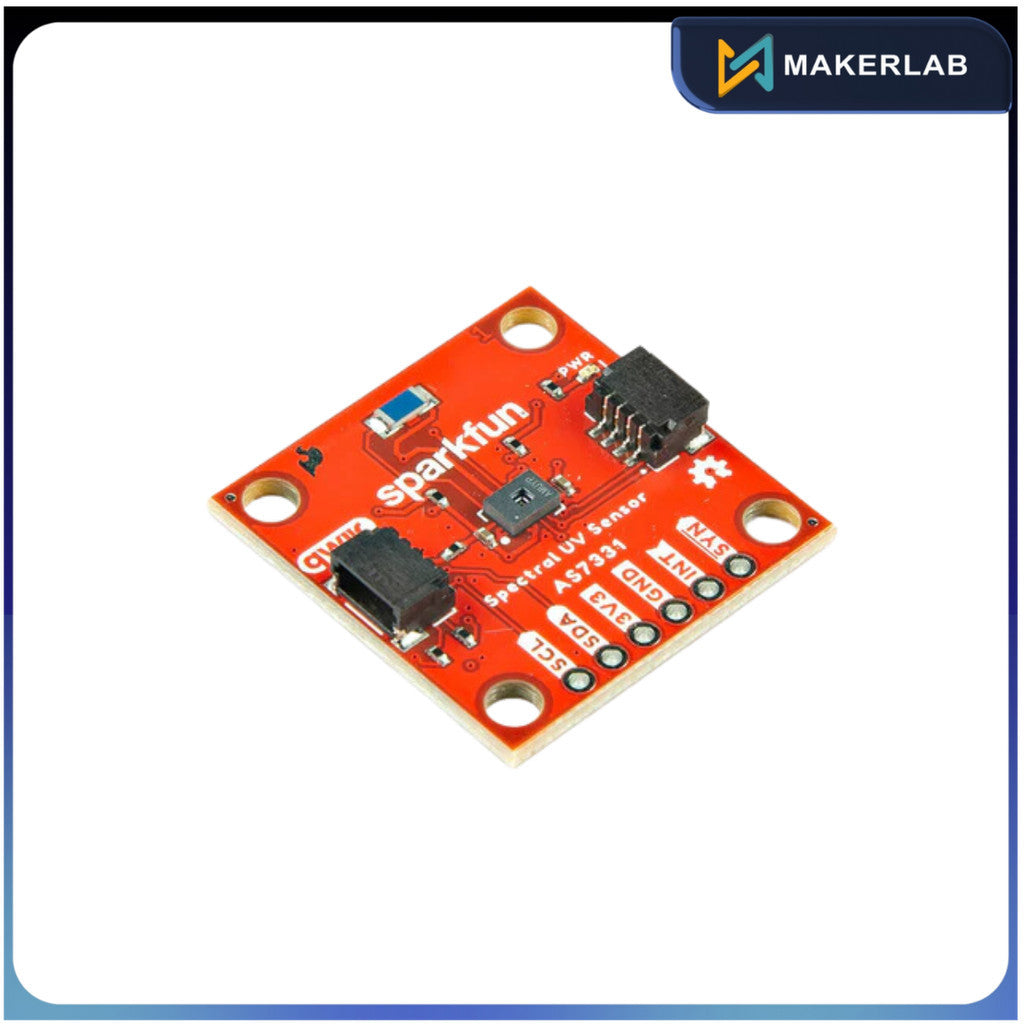

SparkFun Spectral UV Sensor - AS7331

SparkFun Spectral UV Sensor - AS7331

In stock

SKU:MLE05197

Regular price ₱1,999.00
Regular price Sale price ₱1,999.00
Sale Sold out
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
View full details


This SparkFun Qwiic Spectral UV Sensor features the AS7331 UV sensor from ams OSRAM©. It measures UV radiation on three channels: UVA (320-400nm), UVB (280-320nm), and UVC (200-280nm) with high sensitivity and accuracy. The three channels on the AS7331 each have individual photodiodes with built-in interference filters. The sensor has four operating modes: Single Measurement (CMD), Continuous Measurement (CONT), SYNchronized Start (SYNS), and SYNchronized Start & End (SYND), with an automatic power-down sequence between measurements for low current consumption in all three modes.

Specifications:
Operating Voltage: 2.7V-3.6V
Current Consumption:
Active Measurement: 1.42mA (Typ.)
Standby Mode: 970µA
Power Down Mode: 1µA
Three UV Channels: UVA, UVB, & UVC
Each with dedicated photodiode
Four Operating Modes:
Single Measurement
Continuous Measurement
Synchronized Start Measurement
Synchronized Start/Stop Measurement
High Dynamic Range: Up to 3.43E+10 (resolution multiplied by gain range)
2x Qwiic Connectors
Four Adjustable I2C Addresses
Set through A0 & A1 pins
0x74 (Default), 0x75, 0x76, & 0x77
