SKU:MLE03662
Yihua High Frequency 950 | 948D | 948D Upgraded Version
Share
About the Product

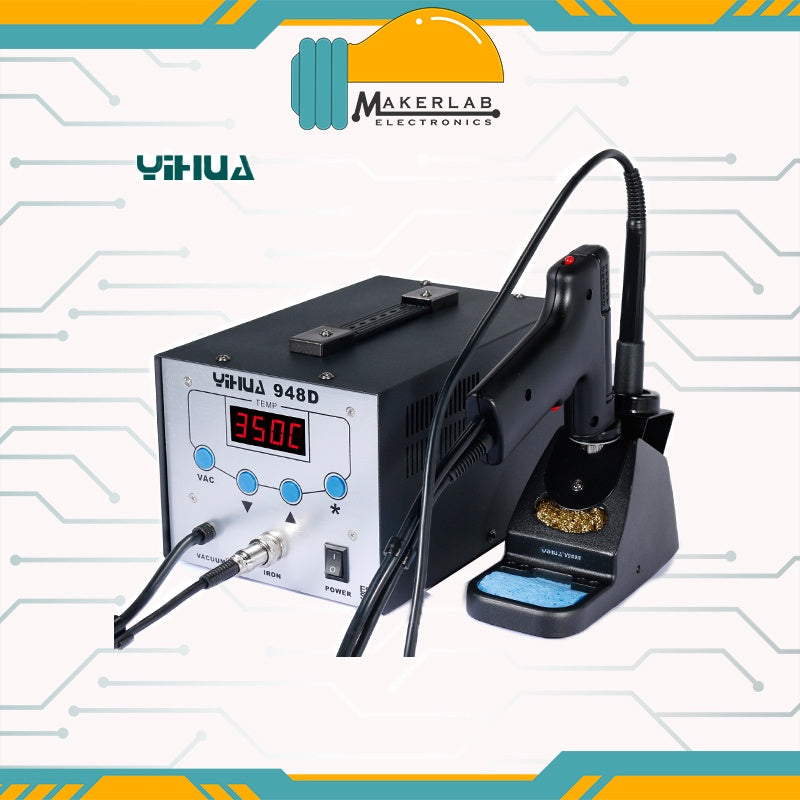

Yihua 948D
PARAMETERS
Model:YIHUA 948D
Input Voltage : AC 220V±10% 50HZ\( 110V±10% 50HZ)
Power: Sunction gun :130W High frquency
Temperature Range:200°C-480°C
Display method :LED digital
Heating elemnt vlotage :AC 36V ±10% f=380KHz
Desoldering pump power:12W
Vacuum Pressure:Max .50Kpa(375mmHg)
Weight :5.7kg/pcs
Tip of ground impedance <2ohm<>
Tip of ground voltage <2mv<>
Operating Temperature :0°C~40°C/32°F~104°F
Storage Temperature:-20°C-4-80°C/-4°F~-176°F
Storage Humidity:35%~45%

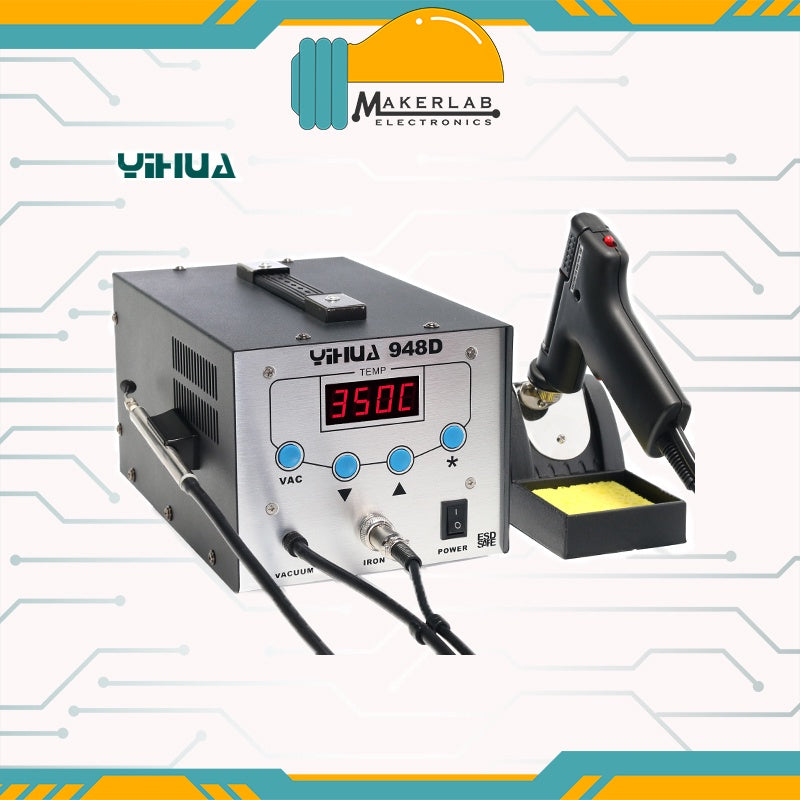

948D Upgraded version V2
PARAMETERS
Model:YIHUA 948D upgrade vsersion
Input Voltage : AC 220V±10% 50HZ\( 110V±10% 50HZ)
Power: Sunction gun :130W High frquency soldering station iorn power is 90W high Frequency
Temperature Range:200°C-480°C
Display method :LED digital
Heating elemnt vlotage :AC 36V ±10% f=380KHz
Desoldering pump power:12W
Vacuum Pressure:Max .50Kpa(375mmHg)
Weight 6kg/pcs
Tip of ground impedance <2ohm<>
Tip of ground voltage <2mv<>
Operating Temperature :0°C~40°C/32°F~104°F
Storage Temperature:-20°C-4-80°C/-4°F~-176°F
Storage Humidity:35%~45%

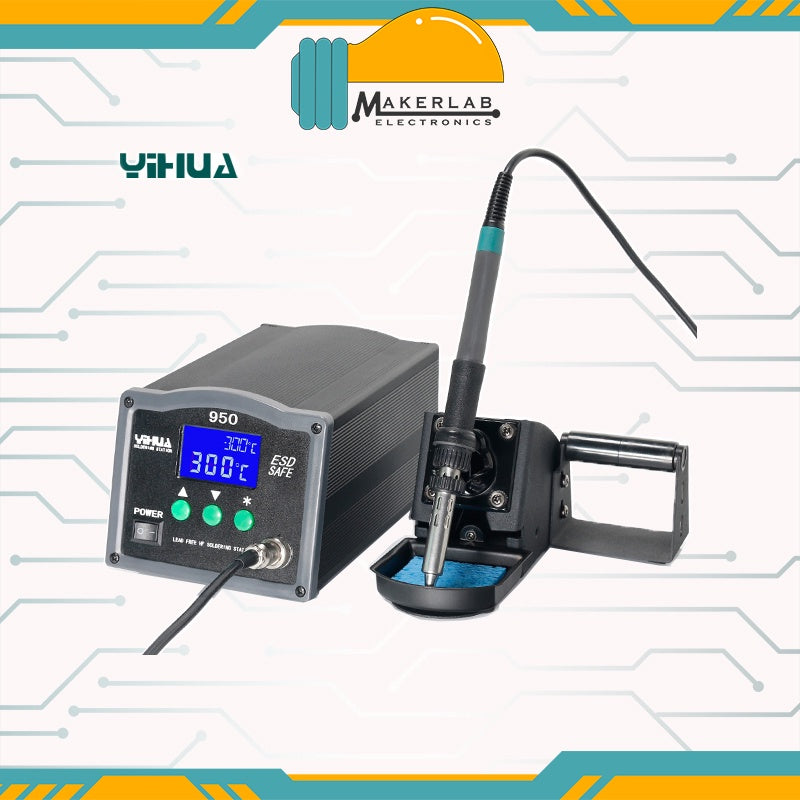

YIHUA 950 150W Soldering Station
PARAMETERS
MODEL 950
RATED VOLTAGE AC 220V±10% 50Hz
OUTPUT POWER 150W
WORKING ENVIRONMENT 0~40℃ relative humidity<80%
STORAGE ENVIRONMENT -20~80℃ relative humidity<80%
BODY SIZE 20*12.6*9.8CM
WEIGHT 4.6KG
WORK VOLTAGE AC 26V±10% 50Hz
TEMPERATURE RANGE Three-optional temperature control, respectively:①200-480℃,②100-450℃,③50-420℃
TEMPERATURE STABILITY ±1℃ (Static)
DISPLAY TYPE LCD display
PID TEMPERATURE CORRECTION CYCLE rapidly 20ms
TIP OF GROUND VOLTAGE <2Ω
TIP GROUND IMPEDANCE <2mV
